YE3-315M-4 132KW Motor Power Solution for Large Equipment

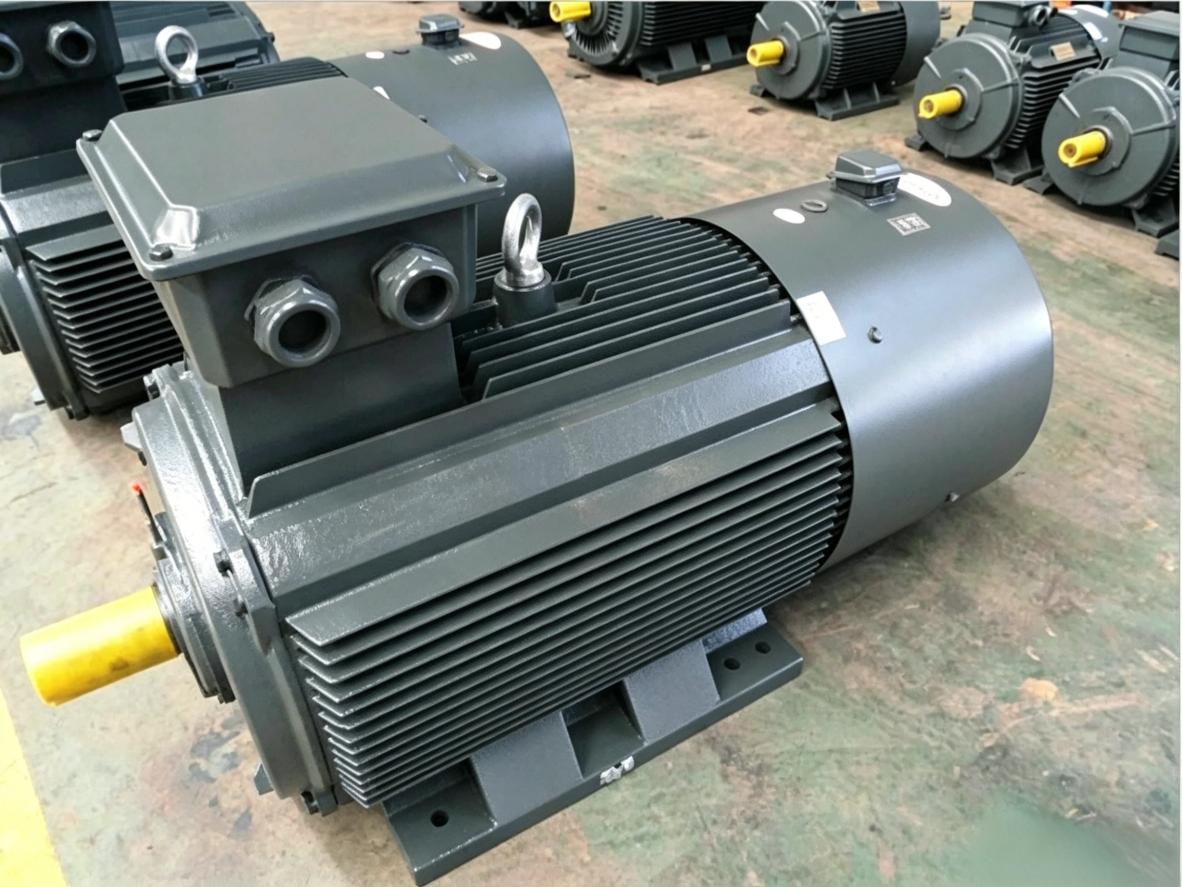

Large industrial equipment (such as heavy-duty fans, high-pressure water pumps, large compressors, mining crushers, metallurgical rolling mills, etc.) places extremely high demands on the power output, operational stability, energy efficiency, and adaptability of the power drive equipment. The reliability of the power system directly determines production continuity and overall operating costs. The YE3-315M-4 132KW ultra-high efficiency three phase asynchronous motor, as a replacement for the Y and Y2 series motors, meets national energy-saving promotion standards. With its core advantages of strong power, high energy efficiency, and compact structure, it is suitable for the power needs of various large equipment.

The YE-315M-4 132KW electric motor's core parameters and structural characteristics provide a solid foundation for use in large equipment. Its parameters strictly comply with relevant industry standards: rated power 132KW, rated voltage 380V, rated frequency 50Hz, rated speed 1480r/min, power factor 0.89, and energy efficiency rating reaching IE3 standard. It meets the Class II efficiency requirements of GB18613-2012 "Energy Efficiency Limits and Energy Efficiency Grades for Small and Medium-Sized Three-Phase Asynchronous Motors," achieving an average efficiency increase of nearly 4.5% compared to traditional Y-series motors, demonstrating significant energy-saving advantages.

The motor employs a fully enclosed self-ventilated cooling system (IC411), with an IP55 protection rating, effectively preventing dust and water intrusion in industrial environments and avoiding internal component wear and overheating failures. It has an insulation class of F, and the entire series meets Class B temperature rise standards, allowing for continuous and stable operation over a wide temperature range of -15℃ to 40℃, adapting to the environmental differences of various industrial scenarios. The rotor uses a reinforced squirrel-cage structure made of high-permeability, low-loss cold-rolled silicon steel sheets, increasing overload capacity by 10%-20% compared to traditional motors. It can withstand 1.5 times the rated current for 2 minutes, easily handling the heavy load impact during the startup of large equipment and load fluctuations during operation.

Based on the operating characteristics of large equipment, this solution follows four principles: precise matching, synergistic efficiency, energy saving and consumption reduction, and convenient operation and maintenance, proceeding in three stages: equipment adaptation, installation and commissioning, and operation and maintenance support. In the equipment adaptation stage, the motor parameters must be precisely matched according to the rated power, operating speed, load characteristics, and working environment of the large equipment to ensure sufficient motor power reserve and avoid problems of "overpowered motor for underpowered equipment" or insufficient power.

For heavy-duty fans and high-pressure water pumps, the focus is on matching the motor speed with the equipment's rated speed, leveraging the motor's high efficiency and energy-saving characteristics to reduce energy consumption during fluid machinery operation. For heavy-duty equipment such as mining crushers and metallurgical rolling mills, the focus is on utilizing the motor's strong overload capacity and stable power output, paired with a dedicated coupling to reduce starting impact and protect the equipment's transmission components. For high-temperature, dusty industrial environments, moisture-proof heating belts and thermistors can be optionally added to enhance motor protection and overheat protection.

During installation and commissioning, strict adherence to motor installation standards and large equipment docking requirements is maintained. Standardized installation methods are employed, with installation dimensions conforming to IEC standards, ensuring precise fit with existing large equipment bases without significant equipment modifications, thus reducing installation costs. During installation, the coaxiality of the motor and equipment is carefully calibrated, connecting components are tightened, and wiring insulation is properly handled. During commissioning, the motor and supporting equipment are gradually started, and various indicators such as speed, current, vibration, and noise are tested to ensure coordinated operation of the motor and equipment, with all parameters meeting design requirements and no abnormal vibration or noise.

In terms of operation and maintenance, a simplified and efficient maintenance plan was developed based on the structural characteristics of the YE3-315M-4 132KW induction motor. This motor has few vulnerable parts and excellent sealing performance, allowing for a routine maintenance cycle of 3-6 months. Key checks include motor temperature, sealing condition, wiring connections, and bearing lubrication. The motor base is equipped with a non-stop oil injection/drainage device, enabling maintenance without shutdown and minimizing downtime losses. Regular cleaning of the motor casing to remove dust and checking insulation performance are essential for timely troubleshooting and ensuring long-term stable operation.

In summary, the YE3-315M-4 132KW electric motor, with its excellent energy-saving performance, stable power output, convenient operation and maintenance features, and wide adaptability, fully meets the power requirements of large-scale equipment. This solution is scientifically sound, highly operable, and addresses the core pain points of power supply for large-scale equipment, achieving the dual goals of energy saving, consumption reduction, and convenient operation and maintenance. It can be widely applied to power supply for large-scale equipment in industries such as chemical, metallurgy, mining, power, and building materials, providing reliable power support for high-quality and high-efficiency production.
