Typical Applications of Slip Ring Motors in Lifting, Mining Industry

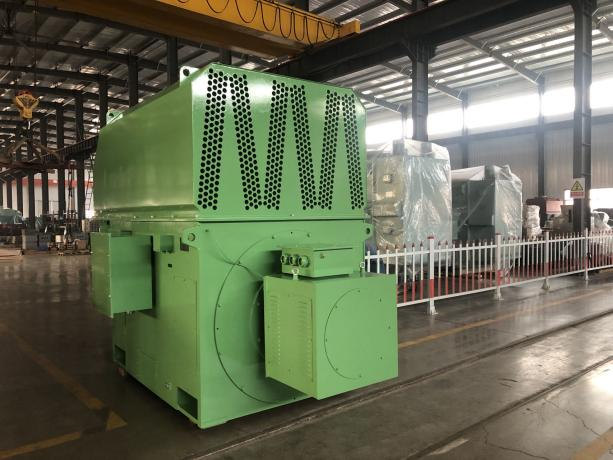

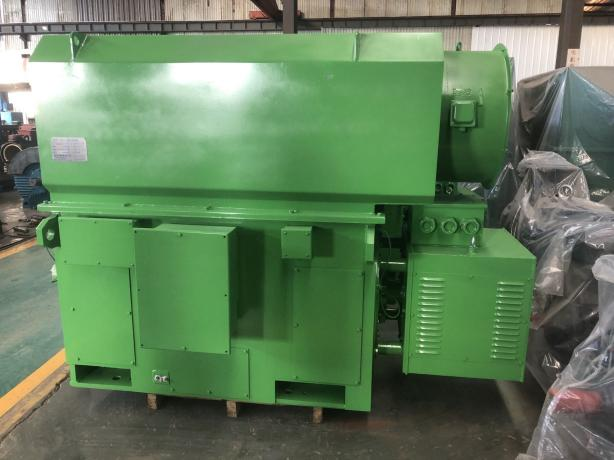

Slip ring induction motors (also known as wound-rotor asynchronous motors) exhibit irreplaceable advantages in heavy-load starting, graded speed regulation, and impact load resistance scenarios due to their unique design that allows external resistance to the rotor circuit, making them a core power equipment in heavy industry. The YRKK630-10, 1200kW 6000V slip ring induction motor, as a representative model in the medium-to-high power range, adopts a box-type welded steel plate structure. Its stator windings are F-class insulated and vacuum pressure impregnated (VPI) treated, achieving an IP54 protection rating. With a synchronous speed of 600 r/min, it possesses strong torque output, stable operating performance, and flexible speed regulation capabilities. It is widely used in critical industrial scenarios such as lifting, mining, and fan industries, effectively solving the power drive challenges under high loads and harsh environments, ensuring efficient and orderly production.

In the lifting industry, the YRKK630-10 1200kW slip ring motor is a core power source for large lifting equipment, especially suitable for heavy-duty equipment such as port gantry cranes, metallurgical cranes, and large tower cranes. Lifting equipment requires frequent starts and stops, heavy-load lifting and lowering, and demands extremely high speed control accuracy and smooth starting performance, which ordinary motors cannot meet. This model uses rotor series resistance starting, which can control the starting current to 1.5~2.5 times the rated current, while simultaneously outputting 1.5~2.5 times the rated torque, achieving direct full-load starting and avoiding damage to the power grid and mechanical components from current surges during startup. For example, when a large port gantry crane is lifting thousand-ton containers, this model can achieve hook speed adjustment from 0.5~3m/s by switching resistance levels in stages, precisely controlling the lifting speed and preventing cargo swaying. Its impact resistance can also cope with sudden load changes during lifting, ensuring operational safety. Furthermore, its modular design makes fault points clear, and daily maintenance only requires periodic checks of brush wear and slip ring cleaning. It is suitable for the long-term continuous operation requirements of lifting equipment, and the bearings can be selected as rolling or sliding types according to working conditions, further improving operational stability.

The mining industry operates under harsh conditions with high dust levels and large load fluctuations, placing stringent requirements on the motor's impact resistance, dust resistance, and heavy-load starting capabilities. The YRKK630-10 1200kW slip ring motor is an ideal choice for mining crushing, hoisting, and conveying equipment. In mine main hoist applications, the equipment needs to overcome the heavy load resistance caused by mine depth and frequently perform lifting, lowering, and stopping. This model provides sufficient starting torque to smoothly drive the hoist. Simultaneously, by adjusting the rotor resistance, it achieves graded speed regulation to adapt to the hoisting needs at different depths, avoiding mechanical shock during heavy-load start-stop operations. It can meet the automated control system requirements of critical scenarios such as coal mine main shaft hoisting. In the driving of large ball mills and crushers, this model can start directly under full load, controlling the starting voltage drop to within 5%, avoiding impact on the mine's power grid. Its rotor resistance can quickly absorb load impact energy, suppressing torque fluctuations to within 20%, handling emergencies such as crusher jamming and ensuring continuous production. Its enclosed slip ring design effectively resists mine dust erosion, with a failure rate more than 40% lower than ordinary motors, making it suitable for the long-term harsh operating environment of mines. It can successfully replace some imported models for driving heavy-duty mining equipment.

In the field of fans, the YRKK630-10 1200kW slip ring motor is mainly used in large industrial fans, power plant boiler induced draft fans, mine ventilation fans, and other equipment. These fans generally have the characteristics of large starting loads and the need for flexible adjustment of operating speed. When large wind turbines start up, the fan blades experience significant air resistance, making it difficult to start ordinary motors and prone to winding burnout. This model, however, uses rotor series resistance for starting, smoothly overcoming starting resistance and reducing the impact of starting current on the power grid. It also allows for graded speed regulation from 50% to 100% of rated speed, adapting to ventilation needs under different operating conditions. For example, power plant boiler induced draft fans require adjusted airflow based on boiler load. This model can precisely adjust the speed by switching resistance levels, ensuring complete combustion in the boiler. Furthermore, its efficient heat dissipation design (using an advanced galvanized threaded tube cooler) can meet the demands of long-term continuous operation, maintaining stable performance even in high-temperature, high-dust fan room environments, reducing downtime and helping the power industry improve production efficiency and reduce energy consumption.

In summary, the YRKK630-10 1200kW slip ring motor, with its core advantages of heavy-load soft starting, graded speed regulation, shock resistance, and high reliability, combined with its optimized structural design and electrical performance conforming to IEC and GB standards, plays an irreplaceable role in the hoisting, mining, and wind turbine industries. Compared to ordinary squirrel-cage motors, although they have inherent limitations due to brush and slip ring wear, these can be effectively avoided through regular maintenance, and the maintenance cost is only 50% to 70% of that of variable frequency motors of the same power. With the integration of brushless and intelligent technologies, this model is being upgraded towards low maintenance and high efficiency. In the future, it will continue to adapt to the high-quality development needs of heavy industry, providing more reliable power support for the efficient, safe, and stable operation of hoists, mines, fans, and other fields.
