Three Phase AC Asynchronous Squirrel Cage Motor YKK450-6 450KW Export to Vietnam

This series of three-phase asynchronous motors YKK450-6, was the first motor purchased by the customer from our company in 2020, replacing the original three-phase asynchronous motors of other brands. To ensure a perfect replacement of the customer's original motor, our engineers designed a 100% perfect replacement plan based on the dimensions provided by the customer. Up to now, the customer has been using the product for 5 years and is very satisfied with its quality. In 2025, due to production needs, the customer has decided to purchase another motor of the same model. Here, we are very grateful to the customer for their recognition of the quality of our company's products.

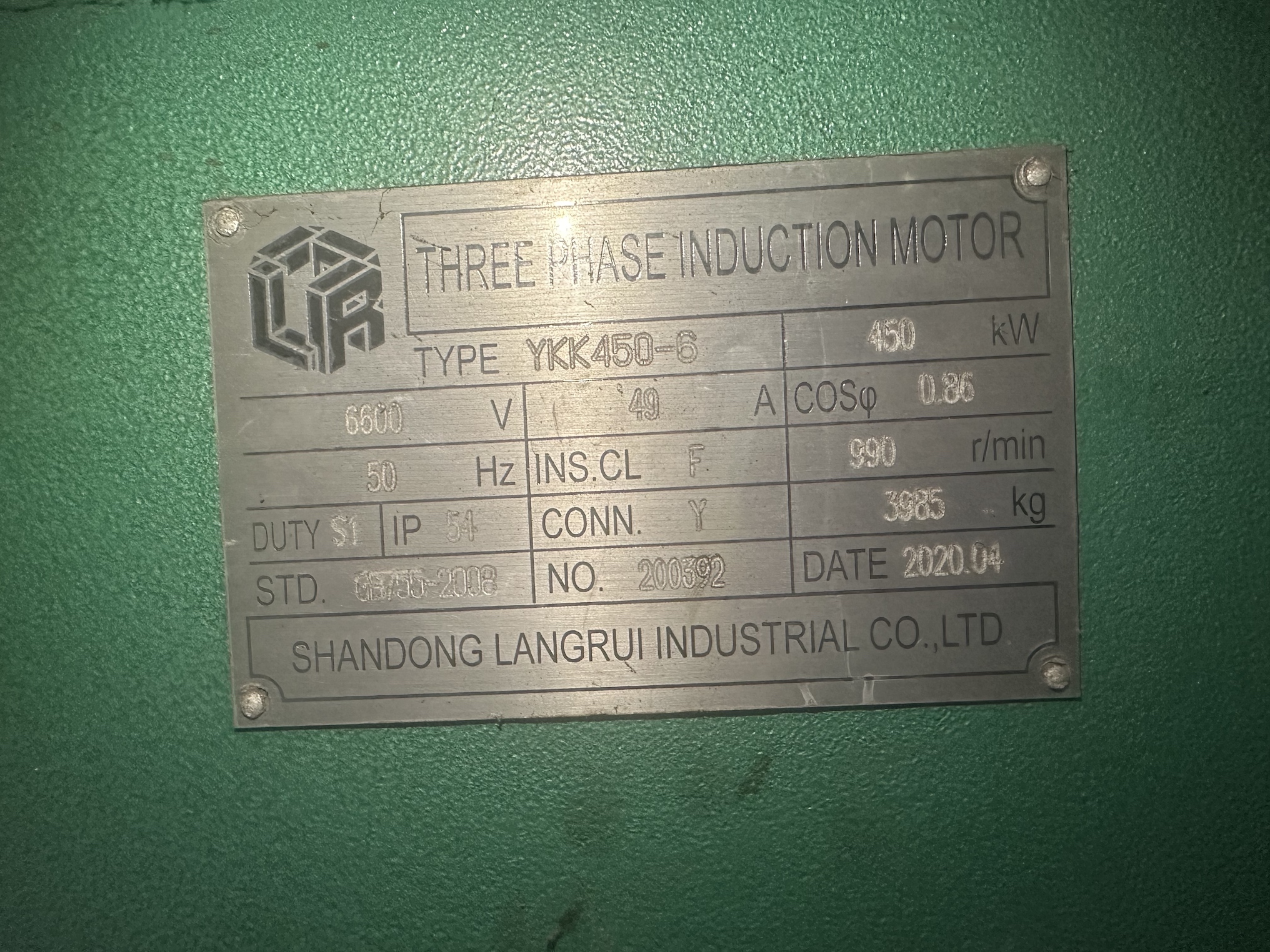

The first motor nameplate is a 450KW 6.6KV 990RPM three-phase asynchronous squirrel-cage induction motor produced by Shandong Langrui Motor in April 2020.

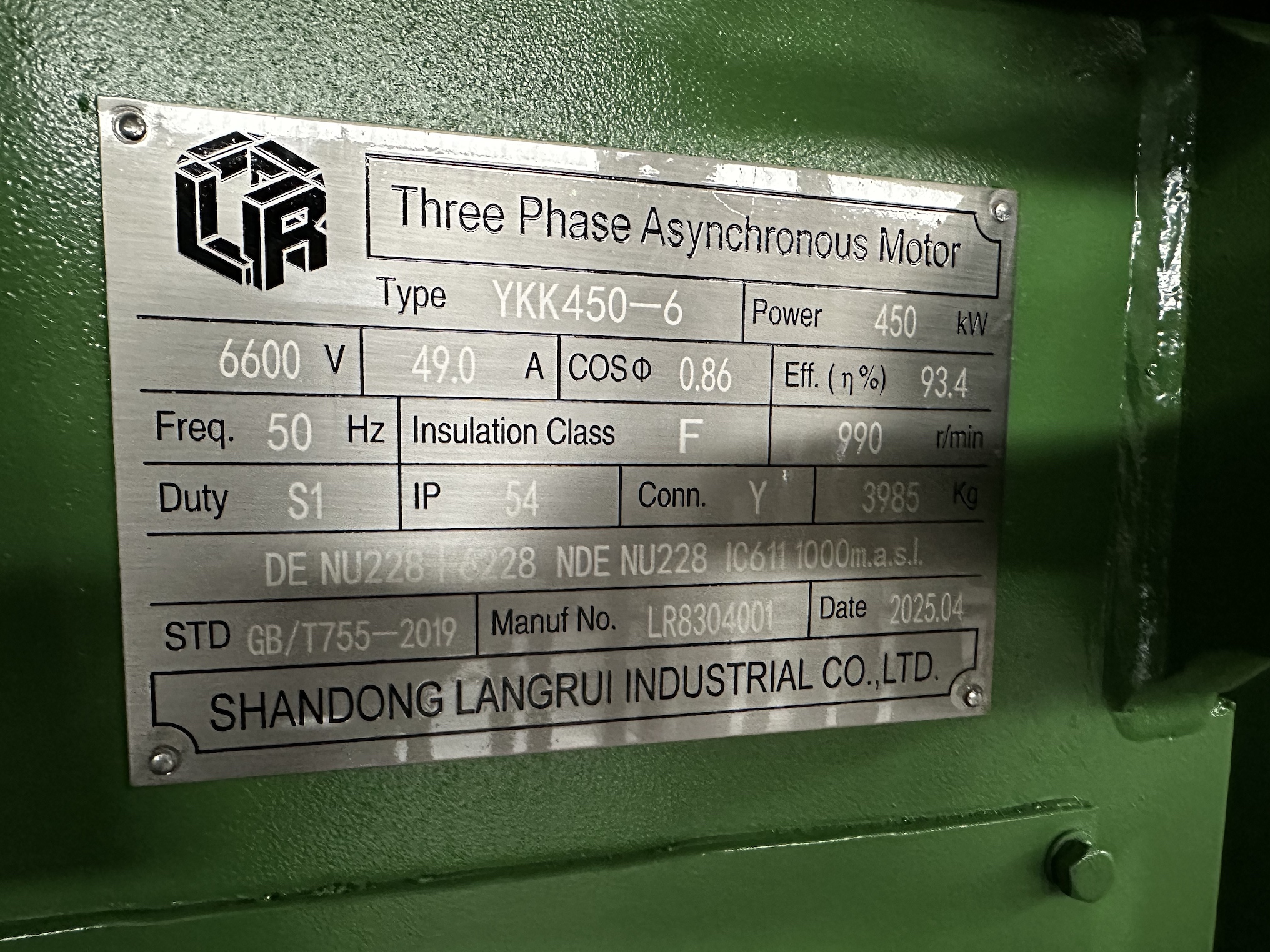

The second nameplate is a 450KW 6.6KV 990RPM three-phase AC asynchronous motor produced by Shandong Langrui Motor in April 2025.

The technical parameters of 3 phase AC asynchronous squirrel cage induction motor are as follows:

Motor Model: YKK450-6 Rated Power:450KW Frequency:50HZ

Rated Voltage: 6600V

Rotation Speed: 990rpm,

Protection Class: IP55

Power Factor:0.86

Insulation Grade: F

Cooling Method: IC611

Drive end bearing:NU228+6228, Non drive end bearing: NU228

Regarding the center height of the YKK series 450 frame, 2400V, 3000V, 6000V, and 6600V motors, We offer multiple power options:
