Slip Ring Induction Motor YRKK5604-6 1000kw Export to The Philippines

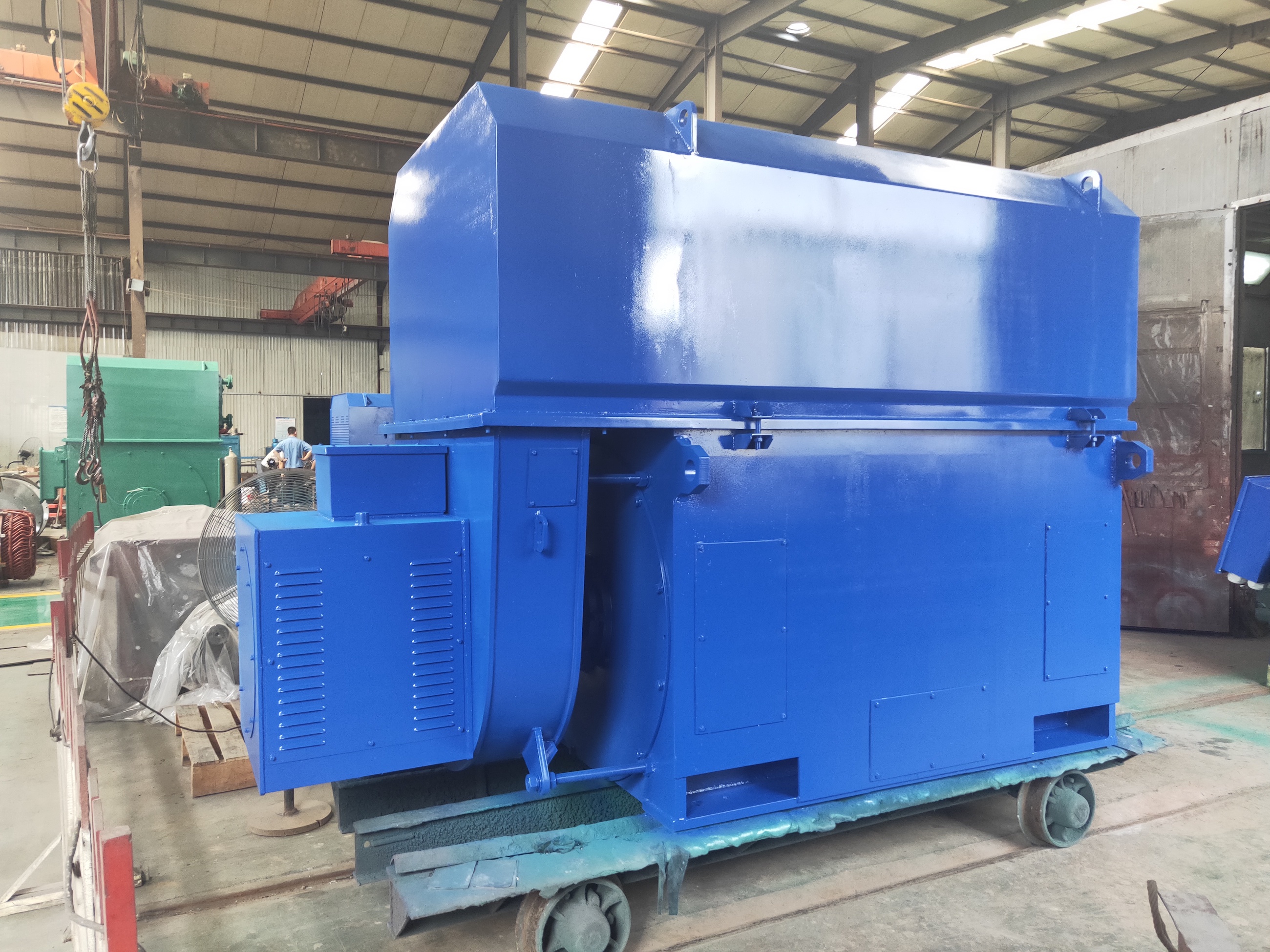

The three-phase asynchronous slip ring induction motor is also called a wound rotor motor. The slip-ring motor YRKK5604-6 1000kw produced by Shandong Langrui Industrial Co., Ltd. is exported to the Philippines.

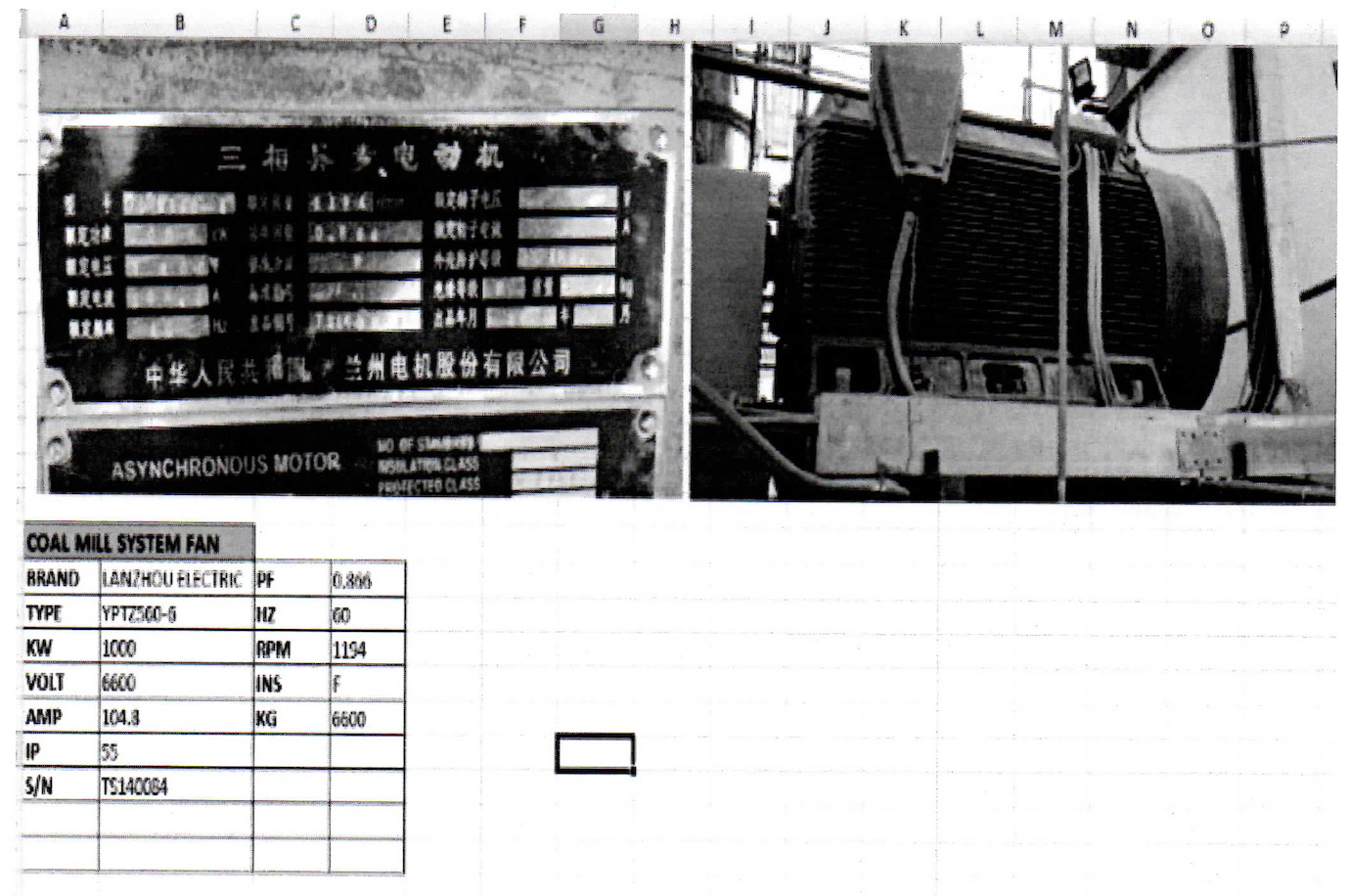

This motor replaces the original 1000kw motor produced by Lanzhou motor factory. The original slip-ring motor data is as follows:

Usage: For Line 2-Coal mill system fan

(Conversion of Coal Mil1 System Fan Induction Motor Squirrel cage to Induction Motor Wound rotor(slip ring motor)with Applicable Liquid rheostat.

SPECS:

INDUCTION MOTOR WOUND ROTOR(SLIP RING MOTOR)

1000KW 6600V 1194RPM 104.3A 60HZ

LANZHUO ELECTRIC

YPTZ560-6

SN:TS140084

With Applicable Liquid Rheostat

Shandong Langrui Industrial Co., Ltd. is a professional manufacturer of large non-standard customized special motors. We modified the size of the standard motor according to the on-site conditions of Philippine customers and perfectly replaced the previous motor.

The technical data of slip ring motor are as follows:

 Motor Model: YRKK5604-6 Rated Power:1000KW  Frequency:60HZ

Rated Voltage: 6600V

 Rotation Speed: 1194rpm,

Protection Class:IP55 Power Factor:0.85

Insulation Grade:F

Drive end bearing:NU234+6234, Non drive end bearing: NU234

Note: YRKK560-6 has multiple power options: 800kw 900kw 1000kw 1120kw 1250kw 1400kw.
