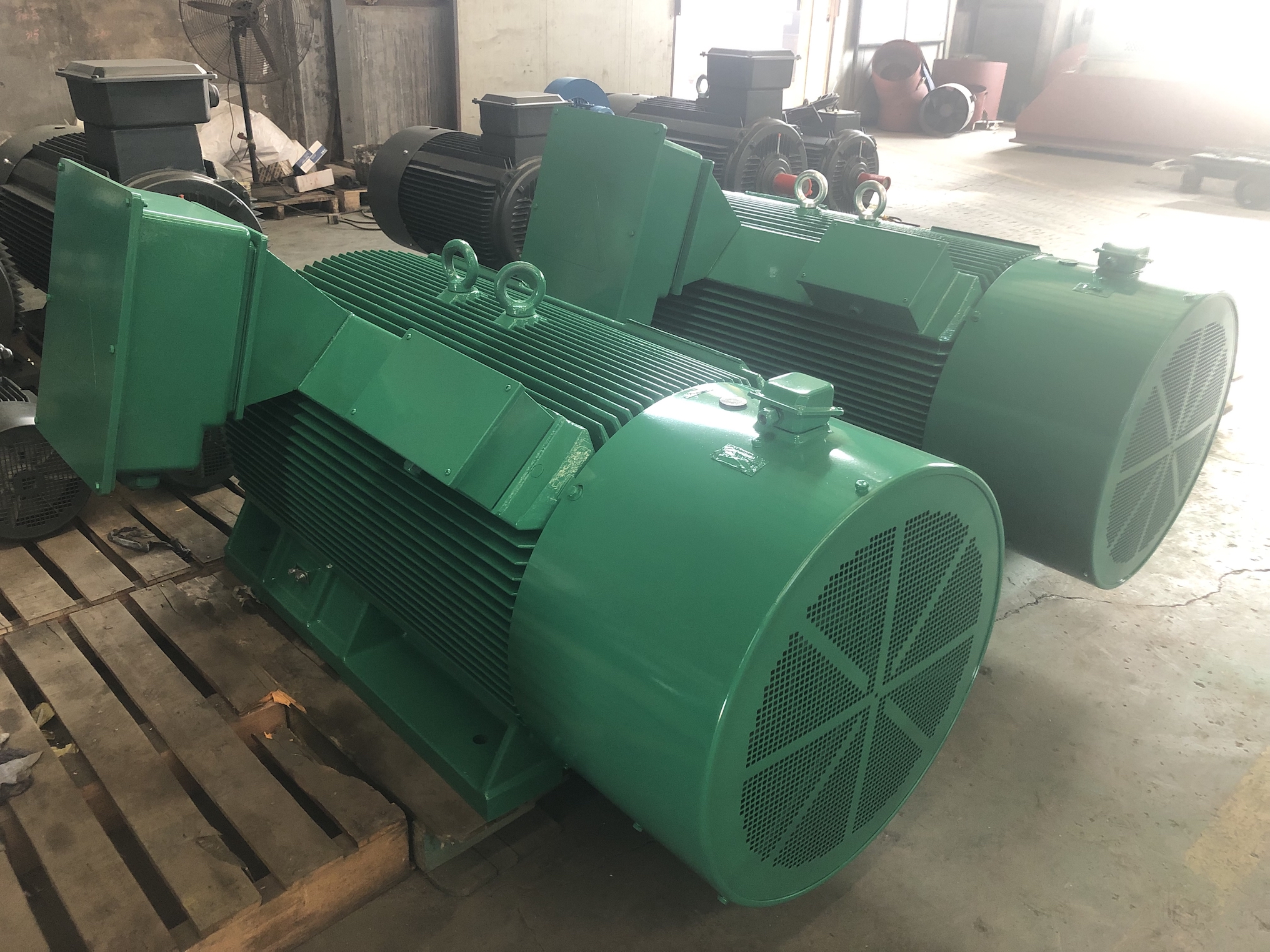

3 phase ac electric motor 1000 kw export to Pakistan

Low and High Voltage 3 Phase AC Asynchronous Electric Motor 1000kw Export to Pakistan, This electric motor is applied to the air compressor in the textile industry.

Working Conditions:

Ambient Temperature: -15~50°C

Altitude: 1000 m.a.s.l

Humidity: ≦90%

Technical Parameters:

Model No.: Y3-450-4 ( Three phase ac asynchronous induction motor )

Voltage: 400V  Rated Power: 1000KW  Frequency: 50HZ

Rotation Speed: 1490rpm  Protection Class: IP55

Insulation Grade: F  Temp. Rising: 80K

Working Duty: S1  Cooling Method: IC411 (Fan cooling)

The available models for the 1000kw 3 phase ac electric motor are:

1000KW ~1120KW AC Asynchronous Induction Motor

Y2-450-4 Y2-500-4 IP54 IP55 IC411

Y3-450-4 Y3-500-4 IP54 IP55 IC411

YKK450-4 YKK500-4 IP54 IP55 IC611

Rated Voltage: 380V 400V 440V 660V 2300V 3000V 3300V 6000V 10000V 11000V
