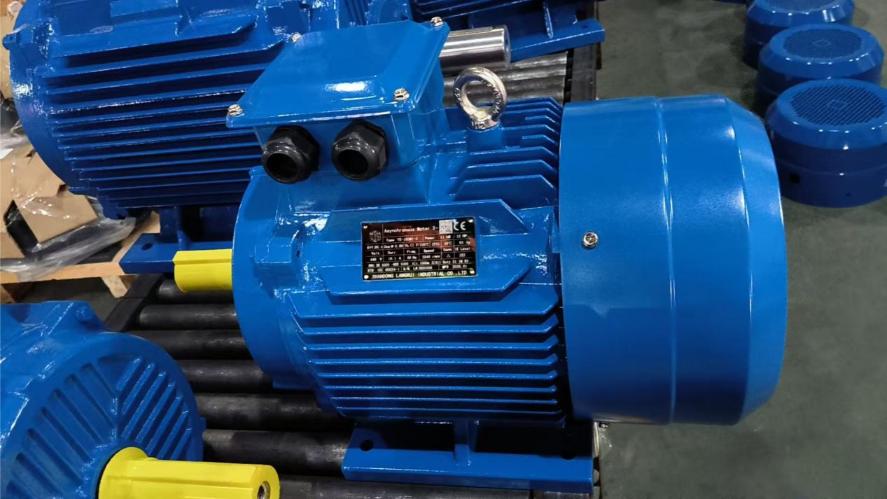

The main force in the industrial field 15kw electric motor

In the vast array of industrial motors, the 15 kW electric motor is a reliable and hardworking "old ox." Unlike smaller motors of several kilowatts that can only power light equipment, or larger motors of tens or even hundreds of kilowatts that require complex supporting systems, the three phase 15 kW asynchronous electric motor occupies the core of the "medium power" category. It is one of the most common, widely used, and frequently used power units on industrial production lines. From metal processing to plastic molding, from air compression to liquid transportation, it can be found everywhere.

Power Positioning and Technical Parameters

The 15 kW electric motor is a mainstay among low-voltage three-phase asynchronous motors. Taking the most common 4-pole (1500 rpm 50Hz) model as an example, its rated torque is approximately 95.5 Nm. This torque level allows it to easily drive various medium-sized industrial equipment, avoiding both insufficient power (like a small horse pulling a heavy load) and excessive power waste.

In terms of dimensions, the frame size of a 3 phase 15 kW electric motor is typically 160 or 180 (IEC standard), with a center height of 160 mm. The total weight is approximately 130 to 180 kg, usually requiring two people or a small lifting device for installation. Under 380V three-phase power supply, the rated current is approximately 29 to 31 amps (IE3 efficiency rating), and the starting current is approximately 180 to 200 amps, which can generally be directly handled by factory power lines.Regarding energy efficiency, an IE2-rated 15 kW 4-pole motor has an efficiency of approximately 90% to 91%, while IE3 can reach over 91%.

The Meaning of "Workhorse"

The 15 kW asynchronous motor is called a "workhorse" because it exhibits the following four characteristics in industrial applications: First, high reliability. The 15 kW motor has a mature structure and moderate technical threshold. Major domestic and international brands have mature product lines, with a mean time between failures (MTBF) of tens of thousands of hours. Numerous examples exist of motors that have been in stable operation for over ten years in many factories. Secondly, it boasts wide adaptability. Whether for constant torque loads (conveyor belts, extruders) or square torque loads (fans, pumps), the 15 kW motor has an optimized design and is compatible with various control methods such as frequency conversion, soft start, and star-delta. Thirdly, it is easy to maintain. Routine maintenance tasks such as bearing replacement, insulation testing, and dust cleaning can be completed independently by a skilled electrician without special tools or external experts. Fourthly, it offers excellent economic benefits. The purchase cost of a 15 kW motor is moderate, and the energy efficiency investment payback period is typically within one to two years, making it one of the most cost-effective power levels.

Typical Application Areas

The metal processing industry is a major user of 15 kW electric motors. This power level is widely used in the spindle drives of medium-sized lathes, the feed tables of milling machines, the reciprocating motion of planer tables, and the cutting spindles of drilling machines. Taking a CA6140 type conventional lathe as an example, its main motor power is typically 7.5 to 15 kW. When machining workpieces with a diameter of 400 mm, the 15 kW version can achieve higher cutting efficiency and a greater depth of cut.

The air compression field also relies heavily on 15 kW motors. Screw air compressors with a displacement of 2.2 to 3.0 cubic meters per minute (0.8 MPa pressure) are typically equipped with a 15 kW motor. This air supply capacity is sufficient to support the pneumatic equipment network of a small assembly line, an auto repair shop, or a laboratory. For applications requiring intermittent air supply, a 15 kW reciprocating air compressor, combined with an air tank, can also meet the simultaneous use of multiple pneumatic tools.

The plastics machinery market also widely uses 15 kW electric motors. Screw plasticizing drives in small and medium-sized injection molding machines, extrusion units in extruders, and traction winding in blown film machines all commonly use 15 kW motors. Especially in extrusion production lines, 15 kW induction motors, combined with frequency converters and reducers, can stably output torque over a very wide speed range, ensuring uniform wall thickness and dimensional accuracy in plastic products.

Water pumps and fans are another major application area for 15 kW motors. Medium-sized centrifugal pumps with a flow rate of 150 to 250 cubic meters per hour and a head of 30 to 50 meters are widely driven by 15 kW ac motors and are commonly found in circulating water systems of small and medium-sized factories, secondary water supply stations in residential communities, and agricultural irrigation pumping stations. In the HVAC field, 15 kW fans can provide reliable airflow for commercial buildings of 2000 to 3000 square meters.

Control and Protection

There are several control options for 15 kW electric motors. For applications with infrequent starts (less than 5 times per hour) and sufficient grid capacity, direct starting is the simplest and most economical method, achieved through a contactor and thermal relay. For applications requiring reduced starting current surges, star-delta reduced voltage starting can reduce the starting current from 6 to 7 times to 2 to 3 times, suitable for environments with limited grid capacity or sensitive to voltage fluctuations. For equipment requiring frequent starts and stops or variable speed operation, frequency converters are the best solution—although more expensive, they offer soft starting, stepless speed regulation, and significant energy savings (over 30% energy savings in fan and pump applications).

Regarding protection devices, thermal overload relays are the most basic overload protection components. For critical equipment, it is recommended to install electronic motor protectors, which can simultaneously provide comprehensive protection against overload, phase loss, imbalance, locked rotor, and grounding faults. In humid or dusty environments, an appropriate protection rating (IP54 or higher) should be selected, and insulation resistance tests should be performed regularly.

The 15 kW ac electric motor doesn't pursue astonishing power density or flaunt cutting-edge control technology; it relies on its robustness, durability, reliability, and stability. In every factory workshop, in every pump station's machine room, and beside every production line's drive point, you can always see these gray-blue or dark gray machines operating quietly and powerfully. They are not as impressive as giant motors, nor as delicate and agile as micro motors, but they support the medium-power drive needs of modern industry in the most simple way. Choosing a 15 kW motor means choosing a trustworthy industrial partner—it won't let you down, and it won't fail you at critical moments.
