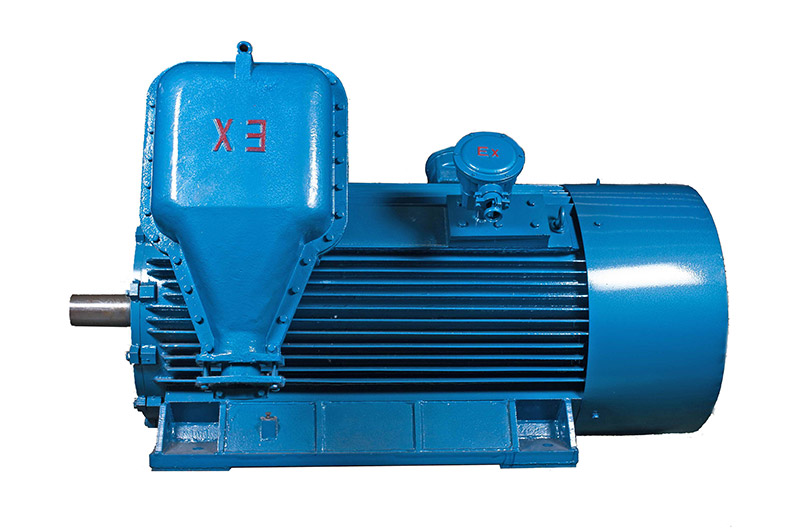

YBBP Series Inverter Duty Explosion Proof Electric Motor

Type: Variable Frequency Inverter Duty Explosion-proof Asynchronous Motor

Ex. Mark: ATEX, CNEx, IECEx

Efficiency level: High efficiency energy-saving

Explosion-proof symbol:

Ex d I Mb, Ex d IIA T4 Gb, Ex d IIB T4 Gb, Ex d IIC T4 Gb

II G 2 Ex d IIB T4, II G 2 Ex d IIC T4

Temperature classes: T1, T2, T3, T4, T5, T6

Temperature classes	T1	T2	T3	T4	T5	T6
The ignition temperature （℃）	450	300≤450	200≤300	135≤200	100≤135	85≤100
The allowed Maximum equipment surface temperature （℃）	450	300	200	135	100	85

Frame size: 80~355 frame

Rated output: 0.37~1000kW

Rated voltage: 220, 380, 400, 415, 440, 460, 480, 500, 550, 660, 690, 760 V

Rated frequency (speed):

50Hz (Synchronous speed 3000/1500/1000/750/600/500 r/min),

60Hz (Synchronous speed 3600/1800/1200/900/720/600 r/min)

No. of poles: 2, 4, 6, 8, 10 Pole

Mounting methods: B3, B35, B5, V1

Material of housing: Cast iron

Insulation class: F (155℃)

Temp. rising: ΔT=80°K (B class)

Protection class: IP44, IP54, IP55, IP56

Cooling: IC416 Forced cooling by independent axial fan

Bearing type: Roller/Ball bearing

Working duty: S1 (Continuous)

Service factor: 1.00

Ambient temperature: -20°C ~ 40°C

Altitude: ≦1000 m.a.s.l

Ambient humidity: ≦90%

Lubricating: With grease system

Grounding lug: on the frame and terminal box

Metric Threaded Cable Entries on the Terminal Box

Customized frame size/power

Materiel of frame: Fabricated in welded steel plate frame

Shaft: Special dimensions, double shaft end, tapered, hollow as per request

Inverter/converter VFD application

Service Factor: 1.15 or above

Insulation Class: H (180℃)

Ambient temperature: Above 40 °C (on request)

Altitude: ＞1000M (on request)

Bearing: SKF, FAG brand

Grease lubricated bearings

Space heaters

Thermostats RTD

Thermal protection PTC

Temperature detector PT100

NDE or both DE and NDE bearing are electrically insulated

Special Winding, Voltage, Frequency

Cooling: IC411 Totally-enclosed, fan-cooled

YBBP Series Variable Frequency Inverter Duty Explosion-proof Asynchronous Motor
Type	Rated	Rated current (A)			Rated	Rated	Efficiency	Power	Ist/In	Tst/Tn	Tmax/Tn	Inertia
	power		at		speed	torque		factor				Jm	Wt.
	kW	380V	400V	415V	r/min	N.m	η%	cosφ	times	times	times	kgm²	Kg
Synchronous speed 3000 r/min 50 Hz (2P)
YBBP80M1-2	0.75	1.81	1.72	1.66	2840	2.5	75	0.84	6	2.2	2.3	0.005	24
YBBP80M2-2	1.1	2.52	2.39	2.31	2840	3.7	78	0.85	6	2.2	2.3	0.0075	33
YBBP90S-2	1.5	3.39	3.22	3.11	2880	5	79	0.85	7.5	2.2	2.3	0.0097	37
YBBP90L-2	2.2	4.80	4.56	4.39	2890	7.3	81	0.86	7.5	2.2	2.3	0.0174	43
YBBP100L-2	3	6.31	6.00	5.78	2900	9.9	83	0.87	7.5	2.2	2.3	0.0303	54
YBBP112M-2	4	8.22	7.81	7.53	2900	13.2	85	0.87	7.5	2.2	2.3	0.0631	80
YBBP132S1-2	5.5	11.0	10.5	10.11	2930	17.9	86	0.88	7.5	2.2	2.3	0.0733	90
YBBP132S2-2	7.5	14.9	14.1	13.63	2930	24.4	87	0.88	7.5	2.2	2.3	0.0762	95
YBBP160M1-2	11	21.5	20.4	19.7	2930	35.9	88.4	0.88	7.5	2.2	2.4	0.21	140
YBBP160M2-2	15	28.6	27.2	26.2	2930	48.9	89.4	0.89	7.5	2.2	2.4	0.25	152
YBBP160L-2	18.5	35.1	33.3	32.1	2930	60.3	90	0.89	7.5	2.2	2.4	0.31	168
YBBP180M-2	22	41.0	39.0	37.6	2940	71.5	90.5	0.9	7.5	2	2.3	0.37	220
YBBP200L1-2	30	55.4	52.6	50.7	2950	97.1	91.4	0.9	7.5	2	2.3	0.63	290
YBBP200L2-2	37	67.9	64.5	62.2	2950	120	92	0.9	7.5	2	2.3	0.73	305
YBBP225M-2	45	82.1	78.0	75.2	2970	145	92.5	0.9	7.5	2	2.3	1.28	400
YBBP250M-2	55	98.7	93.8	90.4	2970	177	93	0.91	7.5	2	2.3	1.55	460
YBBP280S-2	75	134	127	123	2970	241	93.6	0.91	7.5	2	2.3	1.89	625
YBBP280M-2	90	160	152	147	2970	289	93.9	0.91	7.5	2	2.3	2.02	728
YBBP315S-2	110	195	186	179	2970	354	94	0.91	7.5	1.8	2.2	2.26	1100
YBBP315M-2	132	233	222	214	2980	423	94.5	0.91	7.5	1.8	2.2	2.42	1160
YBBP315L1-2	160	282	268	259	2980	513	94.6	0.91	7.5	1.8	2.2	2.76	1350
YBBP315L-2	185	327	310	299	2980	593	94.6	0.91	7.5	1.8	2.2	3.22	1500
YBBP315L2-2	200	352	335	323	2980	641	94.8	0.91	7.5	1.8	2.2	3.41	1600
YBBP355S1-2	185	327	310	299	2980	593	94.6	0.91	7.5	1.8	2.2	3.86	1690
YBBP355S2-2	200	352	335	323	2980	641	94.8	0.91	7.5	1.8	2.2	4.82	1690
YBBP355M1-2	220	387	368	355	2980	705	94.8	0.91	7.5	1.6	2.2	5.46	1840
YBBP355M2-2	250	438	417	401	2980	801	95.2	0.91	7.5	1.6	2.2	6.22	2100
YBBP355L1-2	280	491	467	450	2980	897	95.2	0.91	7.5	1.6	2.2	6.54	2260
YBBP355L2-2	315	551	524	505	2980	1010	95.4	0.91	7.5	1.6	2.2	6.54	2290
YBBP400M-2	400	700	665	641	2980	1273	95.4	0.91	7.5	1.5	2	8.2	3010
YBBP400L-2	450	788	748	721	2980	1432	95.4	0.91	7.5	1.5	2	9.3	3150
YBBP450S-2	450	788	748	721	2980	1432	95.4	0.91	7.5	1.5	2	10.3	3760
YBBP450M-2	500	875	831	801	2980	1592	95.4	0.91	7.5	1.5	2	11.7	4020
YBBP450L1-2	560	980	931	897	2980	1782	95.4	0.91	7.5	1.5	2	15	4200
YBBP450L2-2	630	1103	1047	1010	2980	2005	95.4	0.91	7.5	1.5	2	18	4460
Synchronous speed 1500 r/min 50 Hz (4P)
YBBP80M1-4	0.55	1.57	1.49	1.44	1400	3.8	71	0.75	5	2.4	2.3	0.0077	24
YBBP80M2-4	0.75	2.03	1.93	1.86	1400	5.1	73	0.77	5	2.4	2.3	0.012	33
YBBP90S-4	1.1	2.85	2.71	2.61	1420	7.4	76.2	0.77	6	2.3	2.3	0.015	37
YBBP90L-4	1.5	3.68	3.49	3.37	1420	10.1	78.5	0.79	6	2.3	2.3	0.031	43
YBBP100L1-4	2.2	5.09	4.84	4.67	1440	14.6	81	0.81	6	2.3	2.4	0.039	47
YBBP100L2-4	3	6.73	6.39	6.16	1440	19.9	82.6	0.82	6	2.3	2.4	0.059	58
YBBP112M-4	4	8.80	8.36	8.06	1440	26.5	84.2	0.82	6	2.3	2.4	0.113	80
YBBP132S-4	5.5	11.6	11.0	10.6	1460	36	86	0.84	7.2	2.3	2.4	0.167	95
YBBP132M-4	7.5	15.4	14.6	14.1	1460	49.1	87	0.85	7.2	2.3	2.4	0.186	100
YBBP160M-4	11	22.2	21.1	20.4	1460	72	88.4	0.85	7.2	2.2	2.4	0.36	150
YBBP160L4	15	30.0	28.5	27.5	1460	98.1	89.4	0.85	7.2	2.2	2.4	0.42	168
YBBP180M-4	18.5	36.5	34.7	33.5	1470	120	90.5	0.85	7.2	2.2	2.3	0.68	220
YBBP180L-4	22	43.1	41.0	39.5	1470	143	91.2	0.85	7.2	2.2	2.3	0.72	242
YBBP200L-4	30	57.6	54.7	52.8	1470	195	92	0.86	7.2	2.2	2.4	0.81	335
YBBP225S-4	37	69.9	66.4	64.0	1480	239	92.5	0.87	7.2	2.2	2.4	1.21	400
YBBP225M-4	45	84.7	80.5	77.5	1480	290	92.8	0.87	7.2	2.2	2.4	1.85	415
YBBP250M-4	55	103	98.1	94.6	1480	355	93	0.87	7.2	2.2	2.4	2.32	560
YBBP280S-4	75	140	133	128	1480	484	93.8	0.87	7.2	2.2	2.4	2.86	665
YBBP280M-4	90	167	159	153	1485	579	94.2	0.87	7.2	2.2	2.4	3.34	780
YBBP315S-4	110	201	191	184	1485	707	94.5	0.88	7.2	2.1	2.2	4.68	1150
YBBP315M-4	132	240	228	220	1485	849	94.8	0.88	7.2	2.1	2.2	4.96	1200
YBBP315L1-4	160	288	273	264	1485	1029	94.9	0.89	7.2	2.1	2.2	5.22	1320
YBBP315L-4	185	333	316	305	1485	1190	94.9	0.89	7.2	2.1	2.2	5.43	1420
YBBP315L2-4	200	360	342	329	1485	1286	94.9	0.89	7.2	2.1	2.2	5.62	1500
YBBP355S1-4	185	333	316	305	1488	1187	94.9	0.89	7.2	2.1	2.2	6.45	1700
YBBP355S2-4	200	360	342	329	1488	1284	94.9	0.89	7.2	2.1	2.2	6.56	1800
YBBP355M1-4	220	391	372	358	1488	1412	94.9	0.9	7.2	2.1	2.2	6.88	1830
YBBP355M2-4	250	443	421	406	1488	1605	95.2	0.9	7.2	2.1	2.2	7.22	1940
YBBP355L1-4	280	497	472	455	1488	1797	95.2	0.9	7.2	2.1	2.2	7.46	2080
YBBP355L2-4	315	559	531	511	1488	2022	95.2	0.9	7.2	2.1	2.2	7.68	2260
YBBP400S-2	355	621	590	569	2980	1130	95.4	0.91	7.5	1.5	2	6.8	2940
YBBP400S-4	355	630	598	576	1490	2260	95.2	0.9	7.2	1.4	2	13.9	3090
YBBP400M-4	400	709	674	650	1490	2546	95.2	0.9	7.2	1.4	2	15	3160
YBBP400L-4	450	798	758	731	1490	2865	95.2	0.9	7.2	1.4	2	16.3	3290
YBBP450S-4	450	798	758	731	1490	2865	95.2	0.9	7.2	1.4	2	21	3910
YBBP450M-4	500	887	842	812	1490	3183	95.2	0.9	7.2	1.4	2	24	4170
YBBP450L1-4	560	993	943	909	1490	3565	95.2	0.9	7.2	1.4	2	25.6	4350
YBBP450L2-4	630	1117	1061	1023	1490	4011	95.2	0.9	7.2	1.4	2	32.2	4670
YBBP5001-4	710	1252	1190	1147	1490	4551	96.8	0.89	—	—	2	40	5800
YBBP5002-4	800	1411	1340	1292	1490	5128	96.8	0.89	—	—	2	44	6250
YBBP5003-4	900	1586	1506	1452	1490	5769	96.9	0.89	—	—	2	59	6800
YBBP5004-4	1000	1762	1674	1613	1490	6409	96.9	0.89	—	—	2	64	7350
Synchronous speed 1000 r/min 50 Hz (6P)
YBBP80M1-6	0.37	1.27	1.21	1.17	910	3.9	63	0.7	4	2.1	2.1	0.012	37
YBBP80M2-6	0.55	1.76	1.67	1.61	910	5.8	66	0.72	4	2.1	2.1	0.017	43
YBBP90S-6	0.75	2.29	2.18	2.10	940	7.6	69	0.72	4	2.1	2.1	0.02	54
YBBP90L-6	1.1	3.14	2.98	2.87	940	11.2	73	0.73	5	2.1	2.1	0.039	80
YBBP100L-6	1.5	4.00	3.80	3.66	960	14.9	75	0.76	5	2.1	2.1	0.068	90
YBBP112M-6	2.2	5.57	5.29	5.10	960	21.9	79	0.76	5	2.1	2.1	0.161	105
YBBP132S-6	3	7.31	6.94	6.69	960	29.8	81	0.77	6	2.1	2.4	0.203	120
YBBP132M1-6	4	9.62	9.14	8.81	970	39.4	81	0.78	6	2.1	2.4	0.258	136
YBBP132M2-6	5.5	12.9	12.3	11.8	970	54.1	83	0.78	6.5	2.1	2.4	0.234	140
YBBP160M-6	7.5	17.0	16.1	15.5	970	73.8	85	0.79	6.5	2.1	2.4	0.46	154
YBBP160L-6	11	24.3	23.1	22.3	970	108	87	0.79	6.5	2.1	2.4	0.61	176
YBBP180L-6	15	31.6	30.0	28.9	970	148	89	0.81	7	2.1	2.1	1.01	225
YBBP200L1-6	18.5	37.6	35.7	34.5	970	182	90	0.83	7	2.1	2.4	1.62	290
YBBP200L2-6	22	44.5	42.3	40.7	970	217	90.5	0.83	7	2.1	2.4	1.84	315
YBBP225M-6	30	58.2	55.3	53.3	980	292	91	0.86	7	2.1	2.4	2.43	410
YBBP250M-6	37	71.4	67.9	65.4	980	361	91.5	0.86	7	2.1	2.4	2.68	525
YBBP280S-6	45	86.4	82.1	79.1	980	439	92	0.86	7	2.1	2.4	3.46	635
YBBP280M-6	55	105	99.5	95.9	980	536	92.8	0.86	7	2.1	2.2	3.97	730
YBBP315S-6	75	142	135	130	985	727	93.5	0.86	7	2	2	4.57	1080
YBBP315M-6	90	170	161	155	985	873	93.8	0.86	7	2	2	4.83	1140
YBBP315L1-6	110	207	196	189	985	1067	94	0.86	7	2	2	5.32	1310
YBBP315L2-6	132	245	232	224	985	1280	94.2	0.87	7	2	2	5.95	1400
YBBP355S-6	160	293	279	269	985	1551	94.2	0.88	7	1.9	2	7.32	1650
YBBP355M1-6	185	339	322	310	985	1794	94.2	0.88	7	1.9	2	7.89	1760
YBBP355M2-6	200	365	347	335	985	1939	94.5	0.88	7	1.9	2	8.17	1970
YBBP355L1-6	220	402	382	368	985	2133	94.5	0.88	7	1.9	2	8.25	2140
YBBP355L2-6	250	457	434	418	985	2424	94.5	0.88	7	1.9	2	8.36	2250
YBBP400S-6	280	509	483	466	990	2674	95	0.88	7	1.3	2	20	2930
YBBP400M-6	315	572	544	524	990	3008	95	0.88	7	1.3	2	24	3220
YBBP400L-6	355	645	613	591	990	3390	95	0.88	7	1.3	2	25	3320
YBBP450S-6	355	645	613	591	990	3390	95	0.88	7	1.3	2	26	3490
YBBP450M-6	400	727	691	666	990	3820	95	0.88	7	1.3	2	29	3700
YBBP450L1-6	450	818	777	749	990	4297	95	0.88	7	1.3	2	32	3880
YBBP450L2-6	500	909	863	832	990	4775	95	0.88	7	1.3	2	35	4160
YBBP450L3-6	560	1018	967	932	990	5347	95	0.88	7	1.3	2	37	4450
YBBP5001-6	630	1167	1109	1069	990	6077	96.5	0.85	—	—	2	40	5860
YBBP5002-6	710	1315	1249	1204	990	6849	96.5	0.85	—	—	2	43	6050
YBBP5003-6	800	1479	1405	1354	990	7717	96.7	0.85	—	—	2	47	6780
YBBP5004-6	900	1664	1580	1523	990	8682	96.7	0.85	—	—	2	51	7250
Synchronous speed 750 r/min 50 Hz (8P)
YBBP80M1-8	0.18	0.87	0.83	0.80	710	2.4	53	0.59	3.3	1.9	1.9	0.016	35
YBBP80M2-8	0.25	1.13	1.08	1.04	710	3.4	55	0.61	3.3	1.9	1.9	0.023	41
YBBP90S-8	0.37	1.44	1.37	1.32	710	5	63	0.62	4	1.8	2	0.0097	54
YBBP90L-8	0.55	2.07	1.97	1.90	710	7.4	64	0.63	4	1.8	2	0.0174	80
YBBP100L1-8	0.75	2.36	2.24	2.16	710	10.1	71	0.68	4	1.8	2	0.0174	90
YBBP100L2-8	1.1	3.32	3.15	3.04	710	14.8	73	0.69	4	1.8	2	0.0303	105
YBBP112M-8	1.5	4.16	3.95	3.81	710	20.2	75	0.73	4	1.8	2	0.0631	120
YBBP132S-8	2.2	5.80	5.51	5.31	710	29.6	79	0.73	5.5	1.8	2.2	0.0733	125
YBBP132M-8	3	7.71	7.32	7.06	710	40.4	81	0.73	5.5	1.8	2.2	0.0764	125
YBBP160M1-8	4	10.3	9.76	9.41	720	53.1	81	0.73	6	1.9	2.2	0.32	138
YBBP160M2-8	5.5	13.4	12.8	12.3	720	73	83	0.75	6	1.9	2.2	0.46	144
YBBP160L-8	7.5	17.6	16.8	16.2	720	99.5	85	0.76	6	1.9	2.2	0.61	175
YBBP180L-8	11	25.3	24.0	23.1	730	144	87	0.76	6	1.9	2.2	1.06	225
YBBP200L-8	15	33.7	32.0	30.9	730	196	89	0.76	6.5	1.9	2.2	1.6	315
YBBP225S-8	18.5	40.0	38.0	36.7	730	242	90	0.78	6.5	1.9	2.2	2.28	375
YBBP225M-8	22	47.4	45.0	43.4	730	288	90.5	0.78	6.5	1.9	2.2	2.74	395
YBBP250M-8	30	63.4	60.2	58.1	730	393	91	0.79	6.5	1.9	2	3.67	530
YBBP280S-8	37	77.8	73.9	71.2	740	478	91.5	0.79	6.5	1.8	2	5.16	605
YBBP280M-8	45	94.1	89.4	86.1	740	581	92	0.79	6.5	1.8	2	5.82	700
YBBP315S-8	55	111	106	102	740	710	92.8	0.81	6.5	1.8	2	6.74	920
YBBP315M-8	75	150	143	138	740	968	93.5	0.81	6.5	1.8	2	7.35	1100
YBBP315L1-8	90	180	171	165	740	1162	93.8	0.81	6.5	1.8	2	8.79	1120
YBBP315L2-8	110	220	209	201	740	1420	94	0.81	6.5	1.8	2	9.18	1300
YBBP355S-8	132	263	250	241	740	1704	94.2	0.81	6.5	1.8	2	10.19	1640
YBBP355M-8	160	319	303	292	740	2065	94.2	0.81	6.5	1.8	2	11.24	1820
YBBP355L1-8	185	368	350	337	740	2388	94.2	0.81	6.5	1.8	2	12.48	2100
YBBP355L2-8	200	397	377	364	740	2581	94.5	0.81	6.5	1.2	2	13.56	2200
YBBP400S-8	220	430	409	394	745	2801	94.8	0.82	6.5	1.2	2	18.6	3150
YBBP400M-8	250	489	464	447	745	3183	94.8	0.82	6.5	1.2	2	19.6	3250
YBBP400L-8	280	547	520	501	745	3565	94.8	0.82	6.5	1.2	2	21.5	3420
YBBP450S-8	315	614	584	563	745	4011	95	0.82	6.5	1.2	2	32.8	3750
YBBP450M-8	355	692	658	634	745	4520	95	0.82	6.5	1.2	2	36	3920
YBBP450L-8	400	780	741	714	745	5093	95	0.82	6.5	1.2	2	40.9	4160
YBBP5001-8	450	879	835	805	745	5769	96	0.81	—	—	2	68.9	5680
YBBP5002-8	500	977	928	895	745	6409	96	0.81	—	—	2	74.2	6360
YBBP5003-8	560	1093	1038	1001	745	7179	96.1	0.81	—	—	2	80.1	6680
YBBP5004-8	630	1213	1153	1111	745	8076	96.2	0.82	—	—	2	89.3	7150
Synchronous speed 600 r/min 50 Hz (10P)
YBBP250M1-10	18.5	41.7	39.7	38.2	585	302	91	0.74	6	1.8	2	2.68	380
YBBP250M2-10	22	49.6	47.2	45.5	585	359	91	0.74	6	1.8	2	3.74	545
YBBP280S-10	30	67.7	64.3	62.0	585	490	91	0.74	6	1.5	2	5.63	625
YBBP280M-10	37	83.5	79.3	76.4	585	604	91	0.74	6	1.5	2	6.06	720
YBBP315S-10	45	99.6	94.7	91.2	585	735	91.5	0.75	6	1.2	2	7.32	1110
YBBP315M-10	55	121	115	111	585	898	92	0.75	6	1.2	2	7.68	1150
YBBP315L1-10	75	162	154	148	585	1224	92.5	0.76	6	1.2	2	8.85	1300
YBBP315L2-10	90	191	181	175	585	1469	93	0.77	6	1.2	2	9.68	1640
YBBP355S-10	90	191	181	175	585	1469	93	0.77	6	1.2	2	10.36	1820
YBBP355M1-10	110	230	219	211	585	1796	93	0.78	6.5	1.2	2	11.31	2100
YBBP355M2-10	132	275	261	252	585	2155	93.5	0.78	6.5	1.2	2	12.23	2200
YBBP355L1-10	160	333	317	305	585	2612	93.5	0.78	6.5	1.2	2	13.56	2260
YBBP355L2-10	185	372	353	340	585	3020	94.5	0.8	6.5	1.2	2	14.56	2300
YBBP400S-10	200	402	382	368	595	3183	94.5	0.8	6.5	1.2	2	18.4	3150
YBBP400M-10	220	442	420	405	595	3501	94.5	0.8	6.5	1.2	2	23.4	3260
YBBP400L-10	250	496	471	454	595	3979	94.5	0.81	6.5	1.2	2	25.9	3470
YBBP450S-10	250	496	471	454	595	3979	94.5	0.81	6.5	1.2	2	44.3	3810
YBBP450M-10	280	553	525	506	595	4456	95	0.81	6.5	1.2	2	47.7	3970
YBBP450L1-10	315	622	591	570	595	5013	95	0.81	6.5	1.2	2	47.7	3980
YBBP450L2-10	355	701	666	642	595	5650	95	0.81	6.5	1.2	2	53.1	4120
YBBP5001-10	400	800	760	732	595	6420	95	0.8	—	—	2	76.8	5460
YBBP5002-10	450	900	855	824	595	7223	95	0.8	—	—	2	84.6	6120
YBBP5003-10	500	997	948	913	595	8025	95.2	0.8	—	—	2	92.7	6680
Synchronous speed 500 r/min 50 Hz (12P)
YBBP250M-12	18.5	44.4	42.2	40.6	490	361	90.5	0.7	5.5	1.5	2	3.88	530
YBBP280S-12	22	52.8	50.1	48.3	490	429	90.5	0.7	5.5	1.5	2	5.79	620
YBBP280M-12	30	72.0	68.4	65.9	490	585	90.5	0.7	5.5	1.5	2	6.24	730
YBBP315S-12	37	83.7	79.5	76.6	490	721	92	0.73	6.5	1.2	2	6.94	970
YBBP315M-12	45	102	96.7	93.2	490	877	92	0.73	6.5	1.2	2	7.65	1150
YBBP315L1-12	55	124	118	114	490	1072	92	0.73	6.5	1.2	2	9.12	1170
YBBP315L2-12	75	167	159	153	490	1462	93.5	0.73	6.5	1.2	2	9.48	1350
YBBP355S-12	75	167	159	153	490	1462	93.5	0.73	6.5	1.2	2	10.19	1720
YBBP355M1-12	90	200	190	183	490	1754	93.5	0.73	6.5	1.2	2	11.54	1900
YBBP355M2-12	110	245	233	224	490	2144	93.5	0.73	6.5	1.2	2	12.78	2180
YBBP355L1-12	132	286	272	262	490	2573	93.5	0.75	6.5	1.2	2	13.96	2280
YBBP355L2-12	160	345	328	316	490	3118	94	0.75	6.5	1.2	2	14.93	2340
YBBP400S-12	185	383	364	351	495	3533	94	0.78	6.5	1.2	2	20.2	1950
YBBP400M-12	200	414	394	379	495	3820	94	0.78	6.5	1.2	2	23.5	2120
YBBP400L-12	220	439	417	402	495	4202	94	0.81	6.5	1.2	2	27.2	2200
YBBP450S-12	220	439	417	402	495	4202	94	0.81	6.5	1.2	2	38.3	3960
YBBP450M-12	250	496	471	454	495	4775	94.5	0.81	6.5	1.2	2	44.4	4120
YBBP450L-12	280	556	528	509	495	5347	94.5	0.81	6.5	1.2	2	51.1	4260
YBBP5001-12	315	649	616	594	495	6077	94.6	0.78	—	—	2	2.32	5580
YBBP5002-12	355	729	693	668	495	6849	94.8	0.78	—	—	2	2.86	6320
YBBP5003-12	400	811	770	742	495	7717	94.9	0.79	—	—	2	3.34	6860
Synchronous speed 425 r/min 50 Hz (14P)
YBBP315S-14	30	70.8	67.2	64.8	423	677	92	0.7	6.5	1.2	2	7.65	970
YBBP315M-14	37	87.3	82.9	79.9	423	835	92	0.7	6.5	1.2	2	9.12	1150
YBBP315L1-14	45	106	101	97.2	423	1016	92	0.7	6.5	1.2	2	9.48	1170
YBBP315L2-14	55	130	123	119	423	1242	92	0.7	6.5	1.2	2	10.19	1350
YBBP355S-14	75	172	163	158	423	1693	92	0.72	6.5	1.2	2	11.54	1720
YBBP355M1-14	90	205	195	188	423	2032	92.5	0.72	6.5	1.2	2	12.78	1900
YBBP355M2-14	110	251	238	230	423	2484	92.5	0.72	6.5	1.2	2	13.96	2180
YBBP355L-14	132	298	283	273	423	2980	93.5	0.72	6.5	1.2	2	14.93	2280
YBBP400S-14	160	351	334	322	422	3561	93.5	0.74	6.5	1.2	2	18.9	1960
YBBP400M-14	185	404	384	370	422	4118	94	0.74	6.5	1.2	2	23.2	2080
YBBP400L-14	200	414	394	379	422	4452	94	0.78	6.5	1.2	2	27.8	2230
YBBP450S-14	200	414	394	379	422	4452	94	0.78	6.5	1.2	2	38.3	3760
YBBP450M-14	220	456	433	417	422	4897	94	0.78	6.5	1.2	2	44.4	3820
YBBP450L-14	250	518	492	474	422	5565	94	0.78	6.5	1.2	2	51.1	4160
YBBP5001-14	280	610	580	559	422	6337	94.2	0.74	—	—	2	6.56	5460
YBBP5002-14	315	687	652	629	422	7129	94.2	0.74	—	—	2	6.88	6310
YBBP5003-14	355	773	734	708	422	8034	94.3	0.74	—	—	2	74.3	6760
Synchronous speed 375 r/min 50 Hz (16P)
YBBP315S-16	22	55.8	53.0	51.1	368	571	90.7	0.66	6.5	1.2	2	8.65	920
YBBP315M-16	30	76.1	72.3	69.7	368	779	90.7	0.66	6.5	1.2	2	9.92	1100
YBBP315L1-16	37	93.5	88.8	85.6	368	960	91.1	0.66	6.5	1.2	2	10.48	1120
YBBP315L2-16	45	114	108	104	368	1168	91.1	0.66	6.5	1.2	2	11.19	1300
YBBP355S-16	55	138	131	127	368	1427	91.5	0.66	6.5	1.2	2	12.54	1640
YBBP355M1-16	75	186	177	170	368	1946	91.5	0.67	6.5	1.2	2	13.78	1820
YBBP355M2-16	90	221	210	202	368	2336	92.5	0.67	6.5	1.2	2	14.96	2100
YBBP355L-16	110	266	252	243	368	2855	92.5	0.68	6.5	1.2	2	15.63	2200
YBBP400S-16	132	317	301	290	370	3361	93	0.68	6.5	1.2	2	82.6	1980
YBBP400M-16	160	373	355	342	370	4074	93	0.7	6.5	1.2	2	90.8	2100
YBBP400L-16	185	432	410	395	370	4711	93	0.7	6.5	1.2	2	29.3	2260
YBBP450S-16	185	432	410	395	370	4711	93	0.7	6.5	1.2	2	38.3	3860
YBBP450M-16	200	467	443	427	370	5093	93	0.7	6.5	1.2	2	44.4	3990
YBBP450L-16	220	513	488	470	370	5602	93	0.7	6.5	1.2	2	51.1	4120
YBBP5001-16	250	574	545	526	370	6453	93.2	0.71	—	—	2	78.8	5980
YBBP5002-16	280	641	609	587	370	7227	93.5	0.71	—	—	2	86.6	6220
YBBP5003-16	315	719	683	658	370	8130	93.8	0.71	—	—	2	94.7	6460
