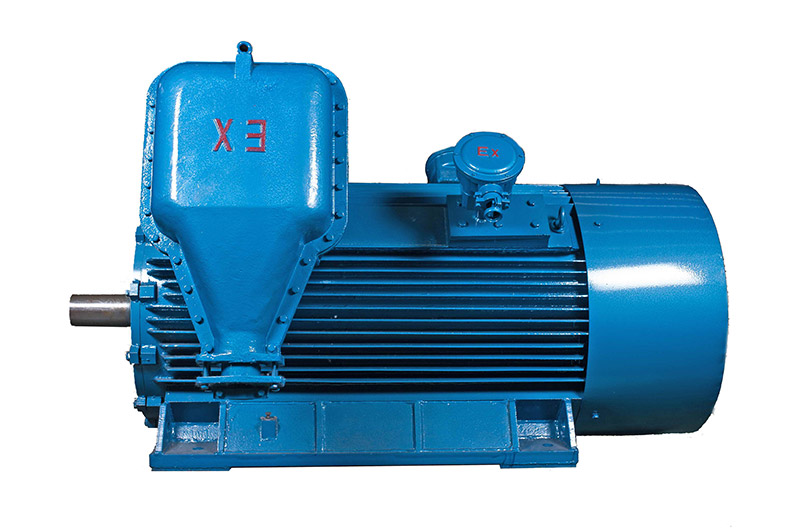

YB2 Series High Voltage Explosion-Proof Electric Motor

Type: Three Phase High Voltage Explosion-proof Electric Motor

Ex. Mark: ATEX, CNEx, IECEx

Efficiency level: High efficiency energy-saving

Explosion-proof symbol:

Ex d I Mb, Ex d IIA T4 Gb, Ex d IIB T4 Gb, Ex d IIC T4 Gb

II G 2 Ex d IIB T4, II G 2 Ex d IIC T4

Temperature classes: T1, T2, T3, T4, T5, T6

Temperature classes	T1	T2	T3	T4	T5	T6
The ignition temperature （℃）	450	300≤450	200≤300	135≤200	100≤135	85≤100
The allowed Maximum equipment surface temperature （℃）	450	300	200	135	100	85

Frame size: 355~560 frame

Rated output: 150~1600kW

Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V

Rated frequency (speed):

50Hz (Synchronous speed 3000/1500/1000/750/600 r/min),

60Hz (Synchronous speed 3600/1800/1200/900/720 r/min)

No. of poles: 2, 4, 6, 8, 10 Pole

Mounting methods: B3, B35, B5, V1

Material of housing: Cast iron

Insulation class: F (155℃)

Temp. rising: ΔT=80°K (B class)

Protection class: IP44, IP54, IP55, IP56

Cooling: IC411 Totally-enclosed, fan-cooled

Bearing type: Roller/Ball bearing

Working duty: S1 (Continuous)

Service factor: 1.00

Ambient temperature: -20°C ~ 40°C

Altitude: ≦1000 m.a.s.l

Ambient humidity: ≦90%

Lubricating: Grease lubricated bearings

Grounding lug: on the frame and terminal box

Metric Threaded Cable Entries on the Terminal Box

Customized frame size/power

Materiel of frame: Fabricated in welded steel plate frame

Shaft: Special dimensions, double shaft end, tapered, hollow as per request

Inverter/converter VFD application

Service Factor: 1.15 or above

Insulation Class: H (180℃)

Ambient temperature: Above 40 °C (on request)

Altitude: ＞1000M (on request)

Bearing: SKF, FAG brand

Bearing type: Sleeve bearing

Bearing thermometer with gauge with/without contact

Independent hydraulic oil circulation system for sleeve bearing

NDE or both DE and NDE bearings are electrically insulated

Space heaters

Thermostats RTD

Thermal protection PTC

Temperature detector PT100

Special Winding, Voltage, Frequency

Cooling: IC416 Forced cooling by independent axial fan

YB2 Series High Voltage Three Phase Explosion-proof Electric Motors
Type	Rated	Rated	Rated	Rated	Efficiency	Power	Tmax/Tn	Tst/Tn	Ist/In	Moment of inertia		Weight
	power	voltage	current	speed		factor				Motor Jm	Allowed J	Wt.
	kW	kV	A	r/min	η%	cosφ	times	times	times	kgm²	kgm²	Kg
YB2 3551-2	185	6	20.9	2985	94.8	0.9	2	0.7	7	2	13.6	2035
YB2 3552-2	200	6	22.5		95.1					2.5	14.8	2080
YB2 3553-2	220	6	24.7		95.4					2.4	16.2	2155
YB2 3554-2	250	6	28		95.6					2.5	19.1	2195
YB2 3555-2	280	6	31.3		95.8					2.8	21.6	2240
YB2 4001-2	315	6	35.2		95.8					4.3	21	2730
YB2 4002-2	355	6	39.6		95.9					4.5	24	2810
YB2 4003-2	400	6	44.5		96					4.9	29	2925
YB2 4004-2	450	6	50		96.2					5.3	32	3015
YB2 4501-2	500	6	54.9		96.3	0.91				6	43	3475
YB2 4502-2	560	6	61.5		96.3					6.2	50	3610
YB2 4503-2	630	6	69.2		96.3					6.8	58	3770
YB2 4504-2	710	6	77.8		96.5					7.5	64	3910
YB2 5001-2	800	6	87.7		96.5					15	85	5725
YB2 5002-2	900	6	98.6		96.5					16	92	5855
YB2 5003-2	1000	6	109.5		96.6					17	103	5990
YB2 5004-2	1120	6	122.3		96.8					19	107	6230
YB2 5601-2	1250	6	136.4		96.9					28	119	7475
YB2 5602-2	1400	6	151.1		96.9	0.92				30	135	7765
YB2 5603-2	1600	6	172.5		97	0.92				32	165	8085
YB2 3551-4	185	6	22.1	1488	94.6	0.85		0.8	6.5	4.8	89	2175
YB2 3552-4	200	6	23.9		94.8					5.4	95	2250
YB2 3553-4	220	6	26.2		95					5.8	105	2310
YB2 3554-4	250	6	29.7		95.2					6.1	112	3345
YB2 3555-4	280	6	33.2		95.5					6.4	138	2385
YB2 4001-4	315	6	37.3		95.6					8	150	2935
YB2 4002-4	355	6	41.9		95.9					8.5	170	3035
YB2 4003-4	400	6	47.1		96.1					9.3	200	3120
YB2 4004-4	450	6	52.3		96.2	0.86				9.8	220	3190
YB2 4501-4	500	6	58.1		96.3					13	240	3850
YB2 4502-4	560	6	65.1		96.3					15	260	4045
YB2 4503-4	630	6	73.1		96.4					16	290	4310
YB2 4504-4	710	6	81.3		96.6	0.87				18	320	4550
YB2 5001-4	800	6	91.5		96.7					33	330	5540
YB2 5002-4	900	6	102.9		96.7					35	380	5730
YB2 5003-4	1000	6	114.3		96.8					37	440	5845
YB2 5004-4	1120	6	127.9		96.9					39	510	5970
YB2 5601-4	1250	6	142.7		96.9					63	750	7575
YB2 5602-4	1400	6	156.1	1488	97	0.89	2	0.8	6.5	68	810	7885
YB2 5603-4	1600	6	178	1488	97.2	0.89				76	910	8245
YB2 3553-6	160	6	20.1	987	94.4	0.81				6.5	202	2330
YB2 3554-6	185	6	23.2		94.6					7	235	2395
YB2 3555-6	200	6	25.1		94.8					7.8	254	2480
YB2 4001-6	220	6	27.2		94.9	0.82				11.8	270	2950
YB2 4002-6	250	6	30.4		95.4	0.83				12.5	306	3000
YB2 4003-6	280	6	34		95.5					13.3	340	3110
YB2 4004-6	315	6	38.2		95.7					14.3	390	3220
YB2 4501-6	355	6	43		95.7				6	16	420	3960
YB2 4502-6	400	6	48.5		95.7					18	490	4170
YB2 4503-6	450	6	54.5		95.8					20	550	4370
YB2 4504-6	500	6	60.4		96					22	620	4570
YB2 5001-6	560	6	67.6		96.1					44	910	5725
YB2 5002-6	630	6	75.9		96.2					46	1020	5845
YB2 5003-6	710	6	85.4		96.4					48	1150	6120
YB2 5004-6	800	6	96.1		96.5					51	1310	6300
YB2 5601-6	900	6	106.7		96.6	0.84				97	1116	7350
YB2 5602-6	1000	6	118.5		96.7					101	1265	7620
YB2 5603-6	1120	6	132.4		96.9					106	1411	7840
YB2 5604-6	1250	6	147.6		97					113	1586	8095
YB2 4001-8	160	6	21.6	742	93.9	0.76			5.5	12.5	390	2930
YB2 4002-8	185	6	24.9		94.1	0.76				13	450	2975
YB2 4003-8	200	6	26.5		94.3	0.77				14	490	3085
YB2 4004-8	220	6	29.1		94.5	0.77				15.3	540	3205
YB2 4501-8	250	6	32.6		94.7	0.78				16	600	3955
YB2 4502-8	280	6	36.4		94.8					18	630	4155
YB2 4503-8	315	6	40.9		95					20	660	4355
YB2 4504-8	355	6	46.1		95.1					22	690	4560
YB2 5001-8	400	6	50.5		95.3	0.8				44	590	5720
YB2 5002-8	450	6	56.6		95.6					46	650	5840
YB2 5003-8	500	6	62.8		95.7					48	710	6110
YB2 5004-8	560	6	70.3		95.8					51	790	6290
YB2 5601-8	630	6	78		95.9	0.81				120	1390	6860
YB2 5602-8	710	6	88		95.9					128	1571	7145
YB2 5603-8	800	6	98.9		96.1					134	1780	7370
YB2 5604-8	900	6	111.1		96.2					140	2017	7610

Type	Rated	Rated	Rated	Rated	Efficiency	Power	Tmax/Tn	Tst/Tn	Ist/In	Moment of inertia		Weight
	power	voltage	current	speed		factor				Motor Jm	Allowed J	Wt.
	kW	kV	A	r/min	η%	cosφ	times	times	times	kgm²	kgm²	Kg
YB2 4501-2	220	10	16	2985	94.6	0.84	2	0.7	7	5.6	14	2875
YB2 4502-2	250	10	18.1		94.7	0.84				6.5	15	3015
YB2 4503-2	280	10	19.8		94.9	0.86				7.4	18	3155
YB2 4504-2	315	10	22.2		95.1					8.6	21	3315
YB2 4505-2	355	10	25		95.2					9.1	26	3400
YB2 4506-2	400	10	28.1		95.5					9.7	31	3480
YB2 4507-2	450	10	31.6		95.6					10.2	36	3525
YB2 4508-2	500	10	34.7		95.7	0.87				10.8	41	3615
YB2 5001-2	560	10	38.8		95.8					12	60	4970
YB2 5002-2	630	10	43.6		95.9					14	70	5090
YB2 5003-2	710	10	49		96					15	85	5220
YB2 5004-2	800	10	54.6		96.1	0.88				16	92	5330
YB2 5005-2	900	10	61.4		96.2					17	103	5460
YB2 5601-2	1000	10	68.1		96.3					19	94	6860
YB2 5602-2	1120	10	75.3		96.4	0.89				28	98	7160
YB2 5603-2	1250	10	83.9		96.5					30	111	7495
YB2 5604-2	1400	10	93.9		96.6					32	126	7795
YB2 4501-4	220	10	16	1488	94.6	0.84		0.8	6.5	12.9	105	3025
YB2 4502-4	250	10	18.1		94.7					14.8	120	3150
YB2 4503-4	280	10	20.3		94.9					16.9	135	3305
YB2 4504-4	315	10	22.5		95.1	0.85				19.2	150	3455
YB2 4505-4	355	10	25.3		95.2					20.3	163	3525
YB2 4506-4	400	10	28.5		95.5					21.6	175	3570
YB2 4507-4	450	10	32		95.6					22.5	188	3645
YB2 4508-4	500	10	35.1		95.7	0.86				23.6	200	3730
YB2 5001-4	560	10	39.2		95.8					31	290	5045
YB2 5002-4	630	10	44.1		95.9					33	330	5205
YB2 5003-4	710	10	49.6		96					35	380	5305
YB2 5004-4	800	10	55.2		96.1	0.87				37	440	5450
YB2 5005-4	900	10	62.1		96.2					39	510	5565
YB2 5601-4	1000	10	68.9		96.3			0.7		58	617	6725
YB2 5602-4	1120	10	76.2		96.4	0.88				63	692	7020
YB2 5603-4	1250	10	85		96.5					68	775	7315
YB2 5604-4	1400	10	95.1		96.6					76	868	7710
YB2 4504-6	220	10	16.4	987	94.2	0.82		0.8	6	27.4	225	3500
YB2 4505-6	250	10	18.7		94.3					28.8	238	3565
YB2 4506-6	280	10	20.9		94.5					30.2	252	3645
YB2 4507-6	315	10	23.4		94.7					33	264	3795
YB2 4508-6	355	10	26.3		94.9					34.9	280	3900
YB2 5001-6	400	10	29.6		95					43	510	5090
YB2 5002-6	450	10	32.9		95.1	0.83				44	590	5240
YB2 5003-6	500	10	36.5		95.2	0.83				46	650	5350
YB2 5004-6	560	10	40.8	987	95.5	0.83	2	0.8	6	48	710	5495
YB2 5005-6	630	10	45.8		95.6			0.8		51	790	5635
YB2 5601-6	710	10	51.6		95.7			0.7		93	984	6950
YB2 5602-6	800	10	58.1		95.8					97	1116	7220
YB2 5603-6	900	10	64.4		96	0.84				101	1265	7495
YB2 5604-6	1000	10	71.5		96.1					106	1411	7740
YB2 5605-6	1120	10	80		96.2					113	1586	8010
YB2 4506-8	220	10	17.5	742	94.1	0.77		0.8	5.5	30	394	3635
YB2 4507-8	250	10	19.6		94.2	0.78				33	406	3770
YB2 4508-8	280	10	22		94.3					35	419	3890
YB2 5002-8	315	10	24.7		94.4					43	820	5150
YB2 5003-8	355	10	27.8		94.6					44	870	5295
YB2 5004-8	400	10	30.9		94.7	0.79				46	950	5405
YB2 5005-8	450	10	34.7		94.8					48	1010	5575
YB2 5601-8	500	10	38.5		95			0.7		113	1236	6525
YB2 5602-8	560	10	42.5		95.1	0.8				120	1390	6760
YB2 5603-8	630	10	47.7		95.3	0.8				128	1571	7005
YB2 5604-8	710	10	53		95.5	0.81				134	1780	7230
YB2 5605-8	800	10	59.6		95.6	0.81				140	2017	7470
